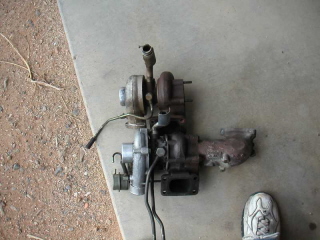

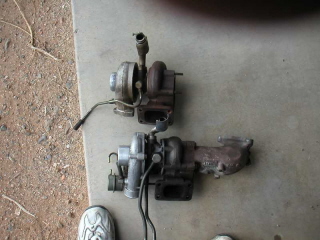

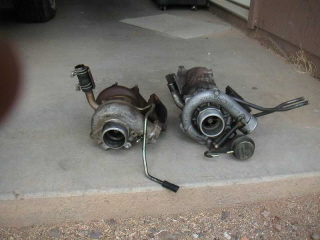

TURBO VERSCHILLEN:
'84: T3, oil lubricated, air cooled, ~6.7 psi.
'85-'87: T3, oil lubricated, water cooled, ~6.7 psi.
'88-'89: T25, oil lubricated, water cooled, ~4.5 psi.
Garrett T3 is bigger than the Garrett T25 | |||
---|---|---|---|
MOTORKAP
VERSCHILLEN:
All year and body style (2 seater vs. 2+2) hoods will interchange within their
year range (84-86 and 87-89) with no problems. The problem arises when you try
to put a later model (87-89) hood on an early model (84-86) car and vice versa.
The hoods are the same length and overall the same basic shape. But because the
87-89 models have narrower head lights, the part of the hood between the head

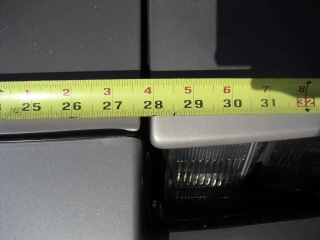

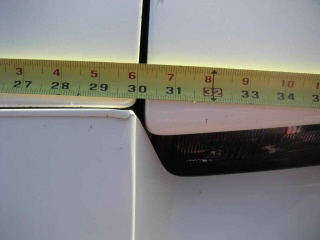

lights is wider. The 87-89 hood is exactly 30" between the head lights. The
84-86 hood is 27-11/16" between the head lights. The only difference in the
84-86 hoods is the turbo hoods in 84 and 85 had hood scoops located just above
the turbo to help force air over the turbo to cool it. Basically, you can try
trimming the 87-89 hood to fit the early models, or you can just put the 84-86
hood on the later models and leave over an inch of a gap. But what it really
boils down to is you need the hood, head light assemblies, and front bumper to
make everything look right.
84-86 motorkap | 87-89 motorkap |
---|---|

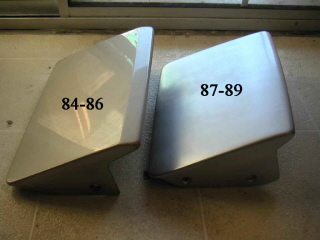

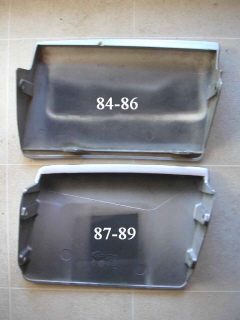

KOPLAMPDEKSEL VERSCHILLEN:
There are only two different style head lights. The 84-86 head lights had both
the high and low beam in a standard sealed 6054 headlamp. Right next to it is
the fog/auxilary light that uses an H3 bulb with a spade connecter instead of
the bullet connecter (or is it the other way around?) you find at major auto
parts stores. The 87-89 used a replacable bulb in a much larger headlamp. The
fog/auxilary driving lights were moved much lower into the bumper.

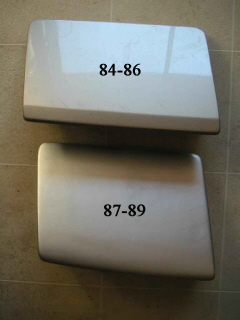

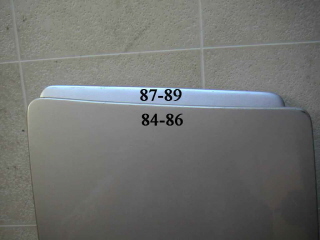

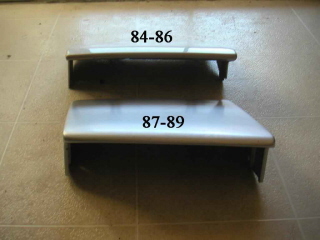

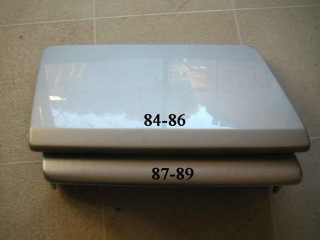

Head light covers | ||
---|---|---|
BUMPER
VERSCHILLEN:

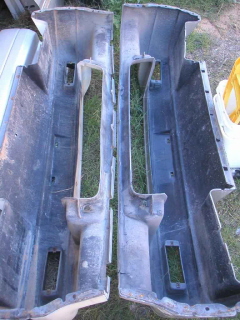

All year Z31 bumpers will interchange with little to no modifications. The front
bumpers should be kept with the same year range hood to maintain the proper look
and finish, unless you are trying for that big gap look. All 87-89 bumpers are
the same. All 84-86 NA bumpers are the same. All 84-86 turbo bumpers are
virtually the same. The only difference is the turbo models with automatic
transmissions had a hole in the front passenger side of the bumper for the oil
cooler. The NA bumpers and turbo bumpers will swap and bolt up with no problems.

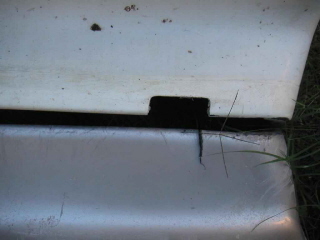

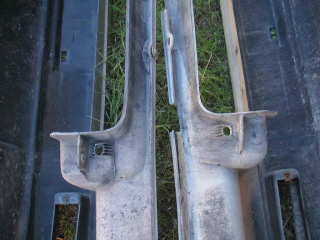

The problems are in the way the 84-86 turbo spoilers mount. The 84-86 turbo
bumpers have notches cut in them for the front spoiler. The 84-86 NA spoilers do

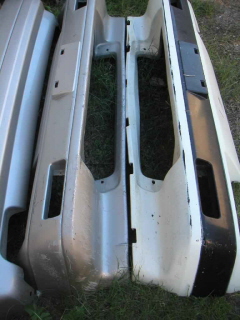

not. The silver bumper in these pictures is of an 86NA. The white bumper is from
an 85 turbo.

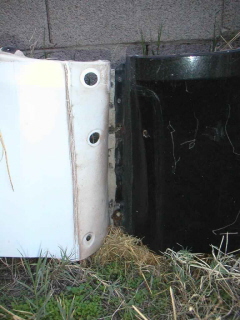

SPATBORDSCHERMEN VERSCHILLEN:

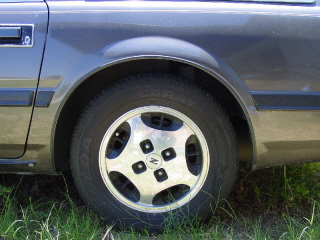

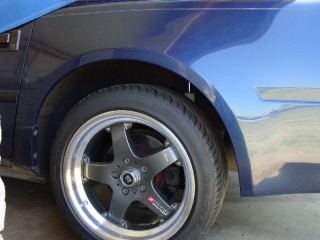

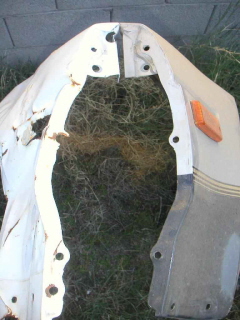

All Z31 fenders will interchange with little to no modifications. The problems
arise in appearances and extra holes. All AE and 86-89 fenders have exactly the
same shape (except for the Canadian SF models). So if you put any one of these
years on any other of the years, the fender will look right on the car shape
wise. All 84 non-50th AE and 85 fenders are the same shape (as well as the 86
Canadian SF models). So, what's the problem? The extra holes. All 84-86 turbos
have holes in the front lower part of the fender for the front spoilers. All
87-89s have these holes as well, but they are in slightly different locations
than the 84-86. None of the 84-86 NAs have any of these holes. The AE and the
86s have holes in the lower rear part of the fender for the side skirts. All
87-89s also have holes in the lower rear part, but there are more of them, and
they are in different locations. None of the non AE 84-85s have any of these

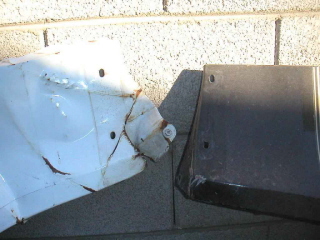

holes. The 87-89 also have an extra hole in the front of the fender where it
connects to the bumper. Basically, if you have a problem drilling or filling
holes, here are the available fenders:

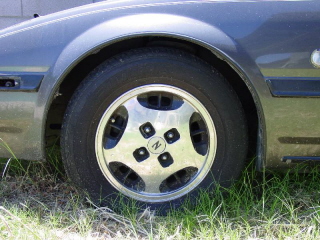

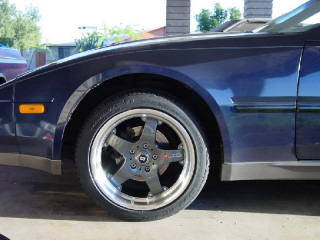

Front 84/85 + 86 SF | Front AE + 86-89 | Rear 84/85 + 86 SF | Rear AE | Rear 86-89 |
---|---|---|---|---|
Coming soon |
Front Lower | Rear Lower | Bumper Mounting |
---|---|---|
SIDE SKIRT
VERSCHILLEN:
There are five different side skirts. The 1984 50th Anniversary. The 1986 2
seater. The 1986 2+2 seater. The 1987-1989 2 seater. The 1987-1989 2+2 seater.
The only difference between the 2 seater and 2+2 of the same year is the added
length.

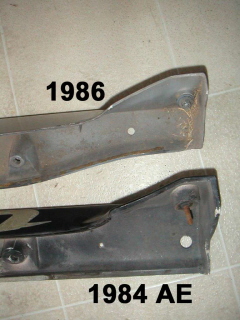

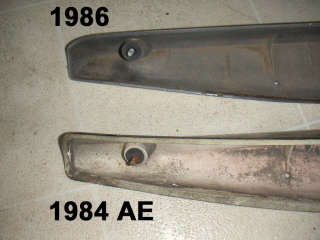

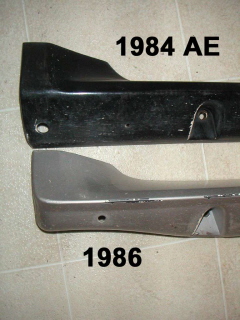

Comparison shots between the 84AE and 86 side skirts. |
---|
ACHTERKLEP
VERSCHILLEN:

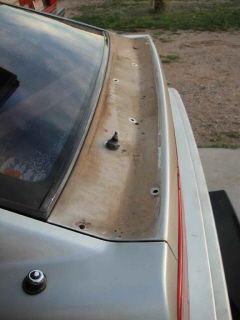

All 2 seater hatches will interchange with each other. All 4 seater hatches will
interchange with each other. The 84 and 85 hatch had no 3rd brake light. The 86
hatch had a 3rd brake light built into the spoiler. the 87-89 hatch had the 3rd
brake light built into the top trim piece with the window sprayer. You cannot
use a 4 seater hatch on a 2 seater. You cannot use a 2 seater hatch on a 4
seater. The other differences lie in the spoilers. The 86 spoiler is unique in
that it has the 3rd brake light built into it. Nissan wanted people to be able
to change the bulbs in the brake light without having to remove the spoiler.
Because of this, there is a hole in the trunk lid to allow easy access to the
bulbs. Because of the third brake light and this hole, the spoiler is a
different shape than the other years. It also uses it's own rear wiper arm.

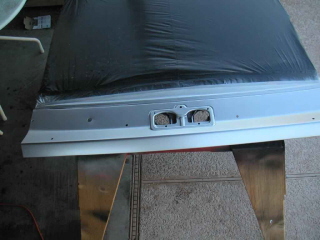

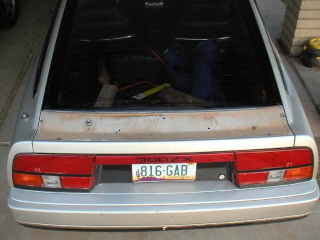

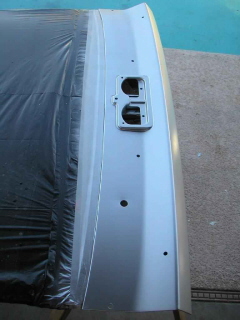

The 86 rear hatch: | All other year rear hatches: |
---|---|

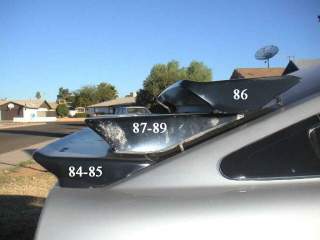

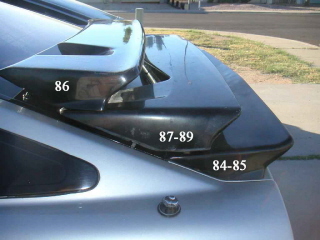

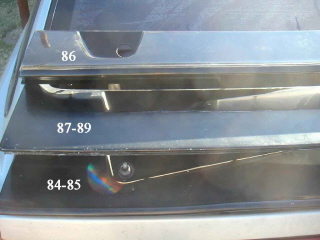

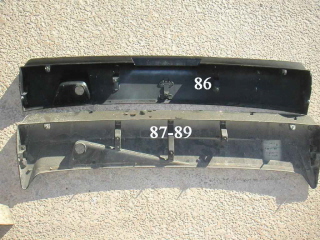

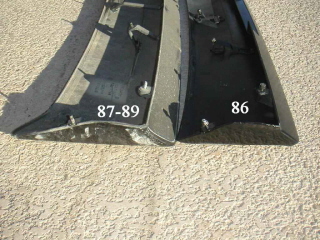

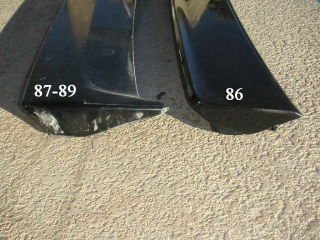

ACHTERSPOILER VERSCHILLEN:

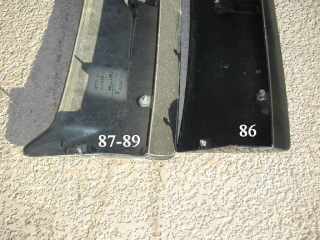

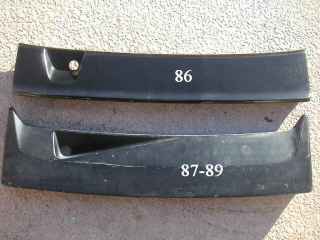

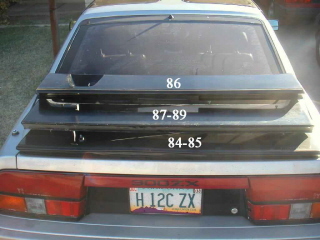

There are 3 different spoilers used on the Z31. The only NA to come with a rear
spoiler was the 1986, because it was designed to hide the 3rd brake light. The
84 and 85 spoilers used a metal subframe with a padded cover and a smooth skin.
These spoilers tend to warp when the metal underneath starts rusting. The 86
spoiler was plastic and the same basic shape except altered slightly for the 3rd
light and wiper. The 87-89 spoilers were slightly taller and returned to the
horizontal rear wiper and made of the same plastic as the 86 spoilers. These
spoilers are also two pieces and have a seam where the back portion joins the
top portion.
ACHTERLICHT VERSCHILLEN:
There are really only two different style taillights. The 84-86 taillights are
two rows of lights with the brake lights in the top row and the turn signal (outside),
back up light (middle) and rear reflector (inside) on the bottom row. The 84-86
tail lights are separated in the middle by the license plate area. Above the
license plate area is a panel that connects the two sides. The panel is red and
reads "300ZX" for all 84s and the 85-86 NA models. The panel is grey and reads
"TURBO 300ZX" for the 85 and 86 turbo models. Also on the 85 and 86 turbos, the
tail lights were slightly smoked to try to match the center panel. The 87-89
tail lights are a single continuous piece that spans the entire width of the car
broken only by the keyhole area. From outside to middle, it is turn signals,
brake light/running lights, reflectors, back up lights, and back out again.
84-86 NA 84 turbo |
|
---|---|
85-86 turbo | |
1987-1989 |
TARGA DAK
VERSCHILLEN:
All year Z31 2 seater t-tops will interchange with all year Z31 2 seaters. All
year Z31 4 seater t-tops will interchange with all year Z31 4 seaters. You
cannot put 2 seater t-tops in a 4 seater. You cannot put 4 seater t-tops in a 2
seater. The T-Tops that came with the 1984 models did not have a lock built in
to them. The T-Tops that came with the 1985 and 1986 models had a built in lock
that used a slightly smaller key than the regular door/ignition key. The T-Tops
that came with the 1987-1989 models had a built in lock that used the same key
as the ignition and doors. I don't believe the valet key would unlock or lock
the t-tops, but I could be wrong. The color of the trim of the t-tops matched
the rest of the window trim of the rest of the car.
84 interior t-top trim | 85-86 interior t-top trim | 1987-1989 interior t-top trim |
Pictures are forthcoming. |
DEUR
VERSCHILLEN:
All year Z31 2 seater doors will interchange with all year Z31 2 seater doors.
All year Z31 4 seater doors will interchange with all year Z31 4 seater doors.
You cannot put 2 seater doors in a 4 seater. You cannot put 4 seater doors in a
2 seater. All door dimensions and mounting points are the same for the same
number of seats. The interior handle/lock piece is higher in the door in the
84/85 models than it is in the 86-89 models. Some of the later model 85 doors
had both mounting locations for the interior handle. All of the 86-89 doors had
both mounting locations for the interior handle. All years, all number of seats
can use any door handle. All years, any number of seats can also use any door
arm rest.
Pictures are forthcoming. |
STUURWIEL VERSCHILLEN:

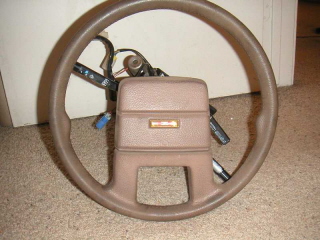

Only four different steering wheels came on the US versions. All 84 models (except
the AE) and all 85 GL models had an open top steering wheel. There were no radio
or cruise controls on any 84 steering wheel except the 50th Anniversary Editions.
For the 84AE and 85 GLL models, the steering wheels got the radio and cruise

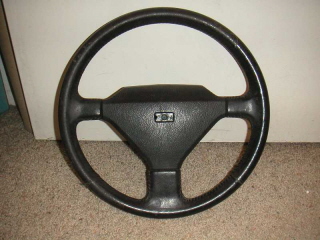

buttons. The 86 models saw a change in both model (GL and GLL) wheels. The GL
got a nice three spoke wheel with an upside down triangle for a horn. The GLL
models got a nice four spoke wheel with the radio and cruise buttons integrated
into the horn. All Z31 steering wheels can be installed on any Z31. The only
issue is the buttons will not work on the GL models unless you replace all the
electronics with them. But putting a GL steering wheel on a GLL will effectively
remove any steering wheel controls. All Z31 steering wheels are fifteen inches.
US Z31 Steering Wheels | JDM y0! | |||
---|---|---|---|---|

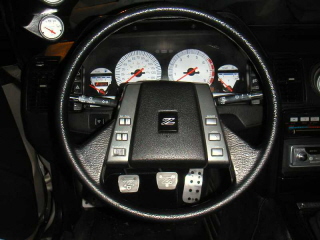

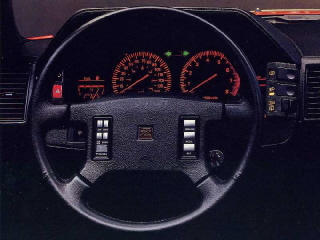

84 GL/GLL & 85 GL | 84 AE & 85 GLL | 86-89 GL & 88 SS | 86-89 GLL | 200ZR-I |
INSTRUMENTENPANEEL VERSCHILLEN:

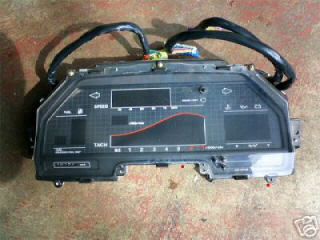

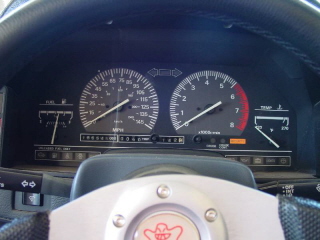

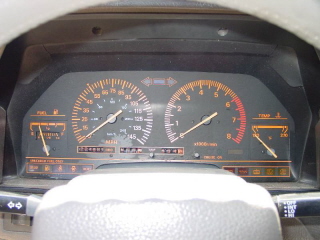

There are essentially five different instrument clusters that came on the Z31.
There are no differences in the main clusters between turbo and non turbo. There
are two analog clusters and three digital clusters. The 84 to 86 analog
instrument cluster is orange. The 87 to 89 analog instrument cluster is white,
but when lit appeared orange. The analog clusters contained the speedometer,
tachometer, fuel gauges, and coolant temperatures. The 84 to 86 digital cluster

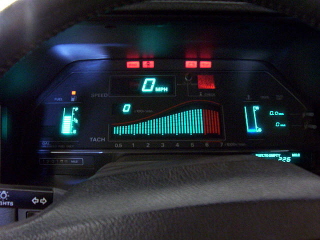

contained all of these plus the oil pressure and voltmeter. The 87 to 89 digital
cluster dropped the oil pressure and voltmeter and relocated the trip odometers.

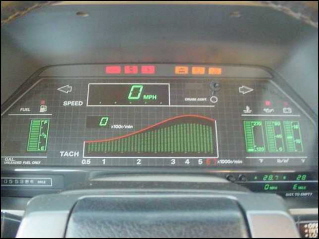

The 84 digital clusters have unevenly spaced tachometer RPM markings. The 85-89
digital clusters spaced the RPMs equally. In the digital clusters, the height of
the tachometer bars signified boost. Full boost (0 psi for NAs, 6.7 psi for
84-87 turbos, and 4.5 psi for 88-89 turbo) is the top row. Full vacuum (-21 inMg)
is the lowest row. Anything in between is purely a guess.
Analog | Digital | |||
---|---|---|---|---|
84-86 | 87-89 | 84 | 85-86 | 87-89 |

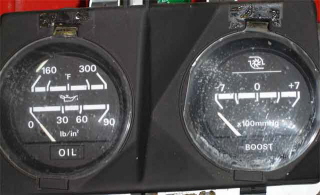

MIDDEN
CONSOLE METERS:

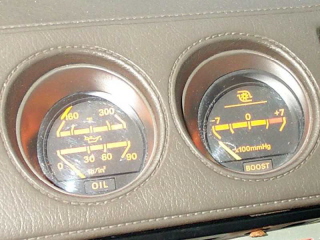

There are seven different center pod styles that came on the Z31. There are four
analog clusters and three digital clusters. There are differences in the

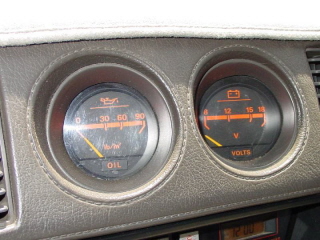

clusters between turbo and non turbo analog clusters. The 84 to 86 analog turbo
models had a boost gauge and dual oil pressure and oil temperature gauges, while
the 84 to 86 non-turboss only had oil pressure and volt meter. The 87 to 89

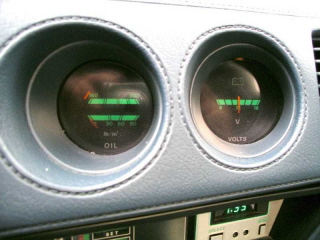

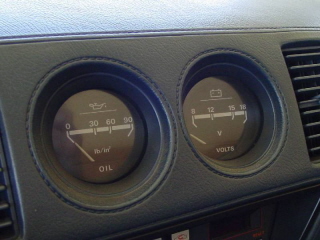

digital cluster is not really digital, it's analog. But they both (turbo and
non) contain the combination oil pressure and oil temperature gauge. The turbos
had the boost gauge in the other slot, while the non-turbos had the volt gauge.
The 84 to 86 analog instrument cluster is orange. The 87 to 89 analog instrument

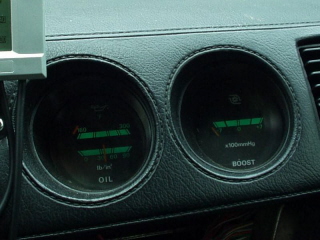

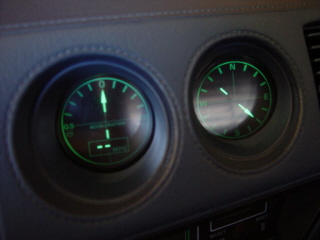

cluster is white, but when lit appeared orange. The 84 to 86 digital cluster has
an accleration gauge on the left and a compass on the right. The 87 to 89
digital cluster is the same as the analog except it's green with red needles.
Analog | Digital | |||
---|---|---|---|---|
NA | Turbo | NA | Turbo | |
84-86 | ||||
87-89 |

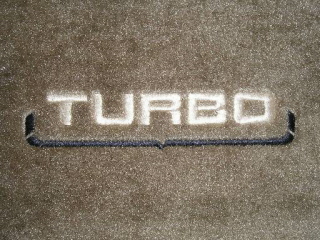

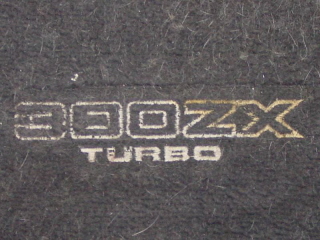

VLOERMAT VERSCHILLEN:

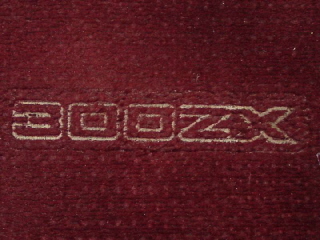

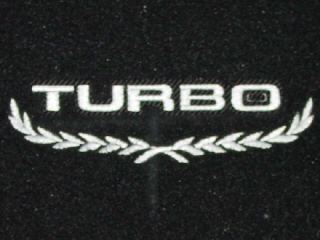

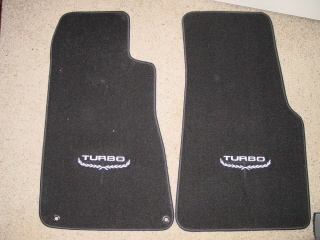

There are several variations of the floor mats. These are determined by year.
Colors also varied slightly by year. There are basically 7 designs. They all had
the same shape. The mat on the left is the driver side mat. The mat on the right
is the passenger side mat.
84-85 | 86 | 87-89 | |
---|---|---|---|
non-turbo | Coming | Coming | |
turbo | |||

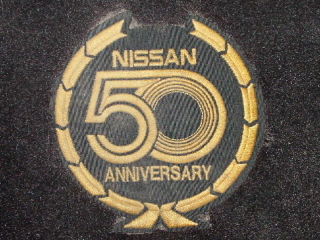

50thAE |
300ZX

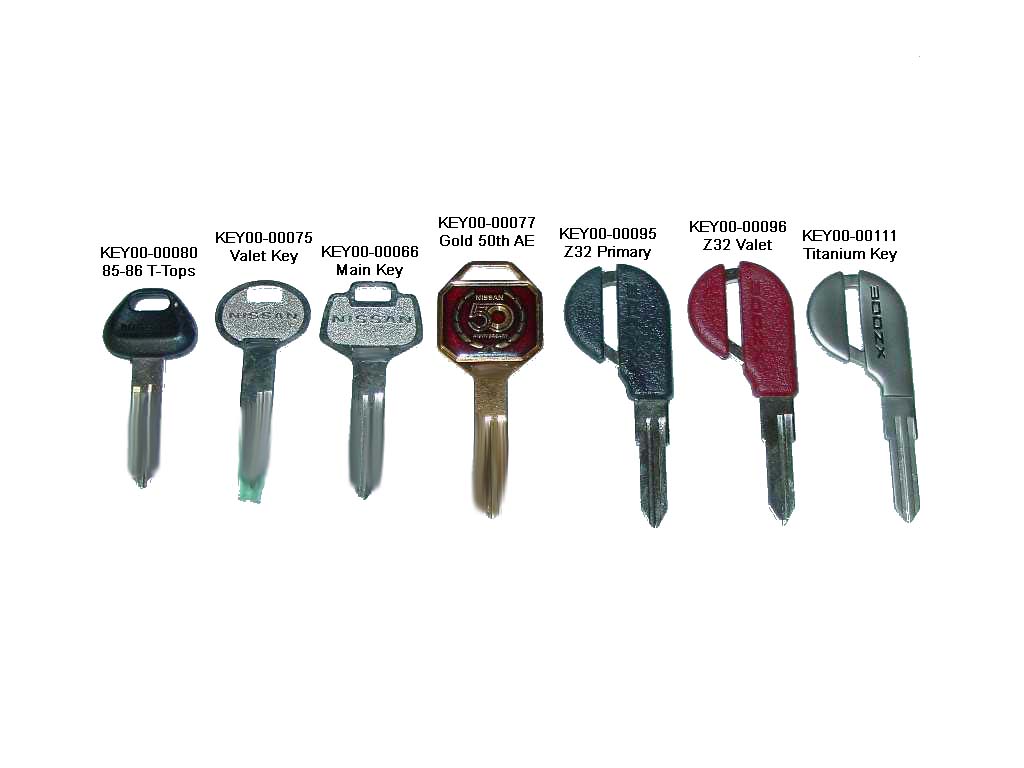

SLEUTEL VERSCHILLEN:
The Z31 model 300ZX had only one special key, and that was the 1984 50th
Anniversary Edition Gold key. All 300ZX models can use the same key styles
provided they are cut to the proper key codes. The Z32 models had a key with the
same groove pattern, but an odd shape. These keys also had "300ZX" embedded in
the head. The 1984 Z31s had no keys for the t-tops. The 1985 and 1986 models had
a smaller black headed key for the t-tops. All other 300ZX years used the main
key as the key for the t-tops. All 300ZX models included a regular primary key
and a secondary "valet" key. The valet key would only operate the doors and
ignition. The regular primary key would operate all lock cylinders in the car.
Any of the keys for Nissan vehicles made from 1984 and on can be cut to work in
a Z31. This means the Z32's "300ZX" key (including the titanuim key) and be cut
to work in the Z31.
300ZX Keys |
---|
